Concentric Cable
Nominal Voltage: 0.6/1kv
Certificate: ISO 9001
Supply Ability: 5000km/Month
Packaging Details: Wood Drum.
Send message
ht@htcable.cn
.png)
■Application
For internal space, in cable channels and free.
In power stations, in industrial units and in control equipments, if any mechanical protection isn’t ordered.

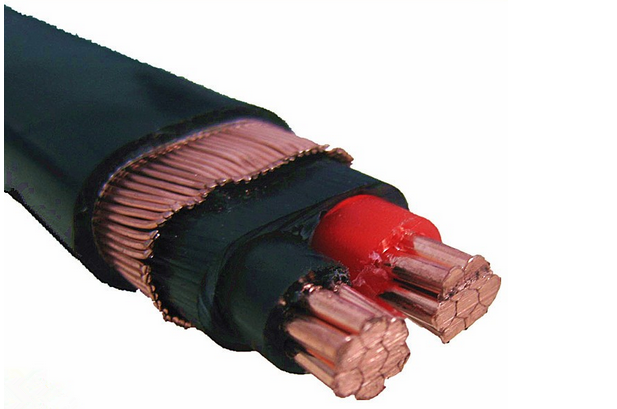

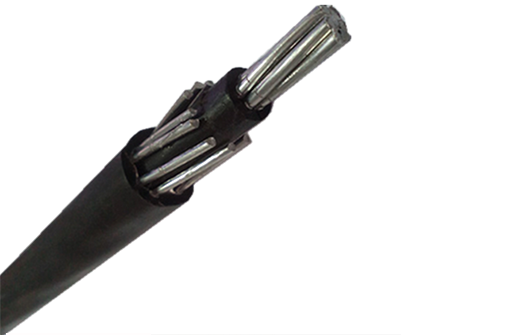

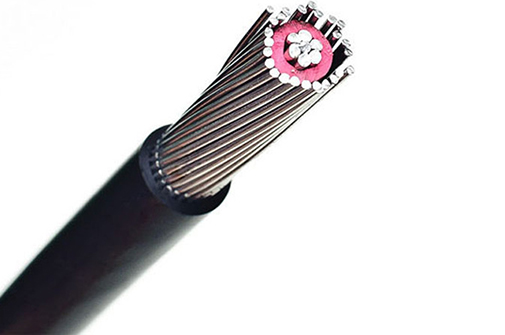

■Structure
- Conductor: Solid or stranded copper or aluminum / 8000 alloy conductor.
- Insulation: XLPE, PVC, PE.
- Neutral conductor: Coverage 100% and non-100% coverage.
- External coverage:Weather resistant material, XLPE, PVC, PE.
■Property
Excellent resistance to oil , water, solvents, corrosives, sunlight, aging, cuts, tears and abrasions. Resistant to most oils and chemicals, good cut, tear and abrasion resistance. MP-GC is suitable for all horizontal mine power distribution, messenger assisted high line transmission and direct burial in wet or dry locations requiring MSHA flame and/or UL approval listings. Jacket will have permanent marking via indent printed legend.
■Download
■IECAS-94-649 CSA C68.3
| ASTM 600/1000v | |||||||||||
| Core | AWG | Structure Size (mm) |
Copper cable (kg/km) |
||||||||
| Conductor | Insulation | Concentric conductor | Outer sheath | ||||||||
| Single wire | XLPE | Single wire | UV-PVC | ||||||||
| No. |
Dia. |
Thick | No. |
Dia. |
Thick | Dia. |
|||||
| 1 | 16 | 7 | 0.49 | 1.14 | 39 | 0.321 | 1.14 | 6.82 | 81.46 | ||
| 1 | 10 | 7 | 0.98 | 1.14 | 34 | 0.511 | 1.14 | 8.67 | 172.04 | ||
| 1 | 8 | 7 | 1.23 | 1.14 | 25 | 0.643 | 1.14 | 9.68 | 221.58 | ||
| 1 | 6 | 7 | 1.55 | 1.14 | 25 | 0.813 | 1.14 | 10.98 | 160.50 | ||
| 1 | 4 | 7 | 1.96 | 1.14 | 27 | 1.020 | 1.14 | 12.62 | 509.26 | ||
| IEC 60502-1 IEC 60228 600/1000v | |||||||||||
| Size (mm2)
|
Structure Size mm | Copper cable (kg/km)
|
|||||||||
| Concuctor | Insulation | Concentric conductor | Outer sheath | ||||||||
| Single wire | Dia.
|
PVC | Single wire | UV-PVC | |||||||
| No.
|
Dia.
|
Thick | No.
|
Dia.
|
Thick | Dia.
|
(kg/km) |
||||
| 10 | 7 | 1.35 | 4.05 | 1.55 | 20 | 0.85 | 1.4 | 11.79 | 301.55 | ||
| 16 | 7 | 1.7 | 5.1 | 1.55 | 32 | 0.85 | 1.4 | 12.84 | 431.7 | ||
| 25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 647.46 | ||
|
|
|
|
|
|
|
|
|
|
|
||
| 16 | 7 | 1.7 | 5.1 | 1.55 | 26 | 1.13 | 1.4 | 13.42 | 244.16 | ||
| 25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 307.3 | ||
| 35 | 19 | 1.53 | 7.65 | 1.65 | 27 | 1.35 | 1.6 | 16.99 | 390.15 | ||
