ACSR/AW-Aluminum Conductor. Aluminum-Clad Steel Reinforced

Certificate: ISO 9001
Supply Ability: 5000km/Month
Packaging Details: Wood Drum, Wood-metal Drum or Metal Drum.
Port: Qingdao / Tianjin/ Ningbo / Shanghai

Send message ht@htcable.cn
    Aluminum Conductor. Aluminum-Clad Steel Reinforced Aluminum Conductor. Aluminum-Clad Steel ReinforcedAluminum Conductor. Aluminum-Clad Steel Reinforced

Applications

Used as bare overhead transmission and as primary and secondary distribution cable. ACSR/AW offers strength characteristics similar to ACSR, along with slightly greater ampacity and resistance to corrosion due to aluminum-cladding of the steel core wires.

Specifications

Huatong ACSR/AW bare conductor meets or exceeds the following ASTM specifications:
• B230 Aluminum 1350-H19 Wire for Electrical Purposes.
• B502 Aluminum-Clad Steel Core Wire for Use in Overhead Electrical Aluminum Conductors.
• B549 Concentric-Lay Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced for Use in Overhead Electrical Conductors.

Structure

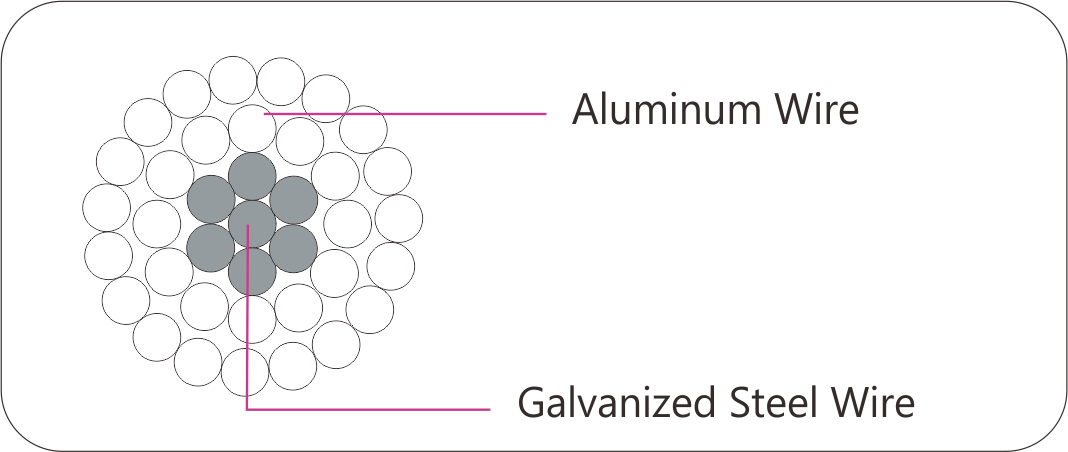

Aluminum 1350-H19 wires, concentrically stranded about an aluminum-clad steel core.


Download



Code
Word
Size
(AWG
or kcmil)
Strand-
  ing
(Al/Aw)
Diameter(ins.) Weight Per
1000 ft.(lbs)
Rated
Strength
(lbs.)
Reslstance
OHMS/1000 ft.
Allowable
Ampacity+
(Amps)
Individual Wires Aw
Core
Comp.
Cable
Al Aw Total DC@
20°C
AC@
75°C
Al Aw

Swan/Aw 4 6-1 0.0834 0.0834 0.0834 0.25 39 16 55 1780 0.3917 0.4770 145
Swanate/Aw 4 7-1 0.0772 0.103 0.103 0.257 39 24 63 2280 0.3814 0.4642 148
Sparrow/Aw 2 6-1 0.1052 0.1052 0.1052 0.316 62 25 87 2760 0.2462 0.2997 194
Sparate/Aw 2 7-1 0.0974 0.1298 0.1298 0.325 62 38 100 3510 0.2396 0.2917 198
Robin/Aw 1 6-1 0.1181 0.1181 0.1181 0.354 78 31 109 3450 0.1950 0.2373 225
Raven/Aw 1/0 6-1 0.1327 0.1327 0.1327 0.398 99 39 138 4250 0.1547 0.1884 260
Quail/Aw 2/0 6-1 0.1489 0.1489 0.1489 0.447 124 50 174 5130 0.1227 0.1494 301
Pigeon/Aw 3/0 6-1 0.1672 0.1672 0.1672 0.502 156 63 219 6300 0.09747 0.1188 347
Penguin/Aw 4/0 6-1 0.1878 0.1878 0.1878 0.563 197 79 277 7690 0.07726 0.09422 402
Waxwing/Aw 266.8 18/1 0.1217 0.1217 0.1217 0.609 250 33 283 6820 0.06364 0.07776 451
Partridge/Aw 266.8 26/7 0.1013 0.0788 0.2363 0.642 251 98 349 10800 0.06169 0.07541 465
Ostrich/Aw 300.0 26/7 0.1074 0.0835 0.2506 0.68 283 110 393 12100 0.05489 0.06712 500
Merlin/Aw 336.4 18/1 0.1367 0.1367 0.1367 0.684 315 42 357 8540 0.05044 0.06175 522
Linnet/Aw 336.4 26/7 0.1137 0.0885 0.2654 0.72 317 123 440 13500 0.04897 0.05989 537
Oriole/Aw 336.4 30/7 0.1059 0.1059 0.3177 0.741 318 177 494 16700 0.04795 0.05861 547
Chickadee/Aw 397.5 18/1 0.1486 0.1486 0.1486 0.743 373 50 422 9780 0.04268 0.05230 580
Brant/Aw 397.5 24/7 0.1287 0.0858 0.2574 0.772 374 116 490 14100 0.04185 0.05124 592
Ibis/Aw 397.5 26/7 0.1236 0.0962 0.2885 0.783 374 146 520 15800 0.04144 0.05072 597
Lark/Aw 397.5 30/7 0.1151 0.1151 0.3453 0.806 375 209 584 19600 0.04059 0.04965 608
Pelican/Aw 477 18/1 0.1628 0.1628 0.1628 0.814 447 59 507 11500 0.03556 0.04344 651
Flicker/Aw 477 24/7 0.141 0.094 0.2819 0.846 449 139 589 16700 0.03487 0.04273 663
Hawk/Aw 477.0 26/7 0.1354 0.1053 0.316 0.858 449 175 624 18900 0.03453 0.04231 669
Hen/Aw 477.0 30/7 0.1261 0.1261 0.3783 0.883 450 251 701 23400 0.03382 0.04139 682
Osprey/Aw 556.5 18/1 0.1758 0.1758 0.1758 0.879 522 69 591 13200 0.03050 0.03749 715
Parakeet/Aw 556.5 24/7 0.1523 0.1015 0.3045 0.914 524 163 687 19300 0.02989 0.03667 731
Dove/Aw 556.5 26/7 0.1463 0.1138 0.3413 0.927 524 204 728 21900 0.02958 0.03627 737
Eagle/Aw 556.5 30/7 0.1362 0.1362 0.4086 0.953 525 293 818 26800 0.02899 0.03551 751
Peacock/Aw 605.0 24/7 0.1588 0.1058 0.3175 0.953 570 177 746 21000 0.02749 0.03377 770
Squab/Aw 605.0 26/7 0.1525 0.1186 0.3559 0.966 570 222 792 23600 0.02588 0.03341 777
Teal/Aw 605.0 30/19 0.142 0.0852 0.426 0.994 571 311 883 28500 0.02672 0.03274 791
Kingbird/Aw 636.0 18/1 0.188 0.188 0.188 0.94 596 79 675 15000 0.02667 0.03286 778
Rook/Aw 636.0 24/7 0.1628 0.1085 0.3256 0.977 599 186 785 22000 0.02616 0.03216 794
Grosbeak/Aw 636.0 26/7 0.1564 0.1216 0.3649 0.991 599 233 832 24800 0.02588 0.03179 801
Flamingo/Aw 666.6 24/7 0.1667 0.1111 0.3333 1 628 195 823 23100 0.02495 0.03069 818
Gannet/Aw 666.6 26/7 0.1601 0.1245 0.3736 1.014 628 245 872 26000 0.02470 0.03034 825
Starling/Aw 715.5 26/7 0.1659 0.129 0.3871 1.051 674 263 936 27500 0.02300 0.02830 863
Redwing/Aw 715.5 30/19 0.1544 0.0927 0.4633 1.081 676 368 1044 33400 0.02260 0.02777 878
Cuckoo/Aw 795.0 24/7 0.182 0.1213 0.364 1.092 749 232 981 27500 0.02093 0.02582 913
Drake/Aw 795 26/7 0.1749 0.136 0.408 1.107 749 292 1040 30500 0.02070 0.02549 922
Tem/Aw 795 45/7 0.1329 0.0886 0.2658 1.063 749 124 873 21500 0.02135 0.02638 896
Condor/Aw 795 54/7 0.1213 0.1213 0.364 1.092 749 232 981 27800 0.02091 0.02578 913
Mallard/Aw 795 30/19 0.1628 0.0977 0.4884 1.139 751 409 1160 37100 0.02033 0.02500 938
Ruddy/Aw 900 45/7 0.1414 0.0943 0.2828 1.131 848 140 988 24000 0.01886 0.02330 970
Canary/Aw 900 54/7 0.1291 0.1291 0.3873 1.162 848 263 1111 31000 0.01849 0.02286 986
Rail/Aw 954 45/7 0.1456 0.0971 0.2912 1.165 899 149 1047 25400 0.01779 0.02210 1003
Cardinal/Aw 954 54/7 0.1329 0.1329 0.3987 1.196 899 279 1177 32900 0.01744 0.02161 1022
Ortolan/Aw 1033.5 45/7 0.1515 0.101 0.3031 1.212 973 161 1134 27200 0.01641 0.02044 1054
Curlew/Aw 1033.5 54/7 0.1383 0.1383 0.415 1.245 973 302 1275 35200 0.01609 0.01997 1074
Bluejay/Aw 1113 45/7 0.1573 0.1048 0.3145 1.258 1048 173 1222 29300 0.01606 0.01905 1103
Pheasant/Aw 1272 54/19 0.1535 0.0921 0.4604 1.381 1204 364 1568 42400 0.01315 0.01646 1216
Bobblink/Aw 1431 45/7 0.1783 0.1189 0.3566 1.427 1348 223 1571 37600 0.01186 0.01503 1283
Lapwing/Aw 1590 45/7 0.188 0.1253 0.3759 1.504 1498 248 1745 41800 0.01069 0.01366 1365

Conductor temperature of 75°C ambient temperature 25°C,emissivity 0.5, wind 2 ft./sec., in sun
Code
Word
Size
(AWG
or kcmil)
Strand-
ing
(Al/Aw)
Diameter(ins.) Weight Per
1000 ft.(lbs)
Rated
Strength
(lbs.)
Resistance
OHMS/1000 ft.
Allowable
Ampacity+
(Amps)
Individual Wires Aw
Core
Comp.
Cable
Al Aw Total DC@
20°C
AC@
75°C
Al Aw
HIGH MECHANICAL STRENGTH
Grouse/AW 80.0 8/1 0.1000 0.1670 0.1670 0.367 75.1 62.6 137.7 4,890 0.1942 0.2357 227
Petrel/AW 101.8 12/7 0.0921 0.0921 0.2763 0.460 96.0 133.9 229.9 9,910 0.1425 0.1736 281
Minorca/AW 110.8 12/7 0.0961 0.0961 0.2883 0.481 104.5 145.8 250.3 10,800 0.1326 0.1594 297
Leghorn/AW 134.6 12/7 0.1059 0.1059 0.3177 0.530 127.0 177.0 304.0 13,000 0.1078 0.1313 335
Guinea/AW 159.0 12/7 0.1151 0.1151 0.3453 0.576 150.0 209.1 359.1 15,300 0.09123 0.1112 372
Dotterel/AW 176.9 12/7 0.1214 0.1214 0.3642 0.607 166.8 232.7 399.5 16,900 0.08201 0.09988 398
Dorking/AW 190.8 12/7 0.1261 0.1261 0.3783 0.631 180.0 251.1 431.0 18,300 0.07601 0.09261 418
Brahma/AW 203.2 16/19 0.1127 0.0977 0.4885 0.714 191.7 411.0 602.7 27,100 0.0657 0.07994 464
Cochin/AW 211.3 12/7 0.1327 0.1327 0.3981 0.664 199.3 278.0 477.3 19,800 0.06863 0.08364 445
Conductor temperature of 75°C ambient temperature 25°C,emissivity 0.5, wind 2 ft./sec., in sun
