Conductor

Conductor :

ACSS-Aluminum Conductor Steel Supported

Certificate: ISO 9001
Supply Ability: 5000km/Month
Packaging Details: Wood Drum, Wood-metal Drum or Metal Drum.
Port: Qingdao / Tianjin/ Ningbo / Shanghai

Send message

ht@htcable.cn

■Application

ACSS is used for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength; it sags less than a comparable ACSR under electrical loadings; it is self-damping if prestretched during installation; and its final sags are not affected by long term creep of aluminum. The advantages make ACSS especially useful in reconductoring applications requiring increased current with existing tensions and clearances, new line applications where structures can be economized because of reduced conductor sag, new line applications requiring high emergency loadings, and lines where aeolian vibration is a problem.

■Structure

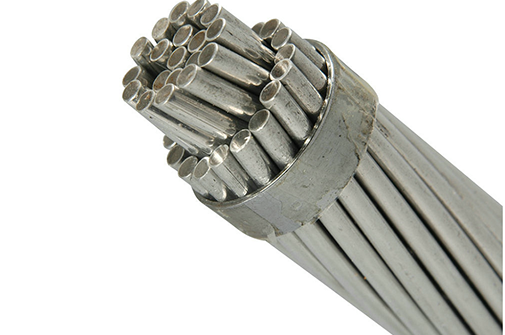

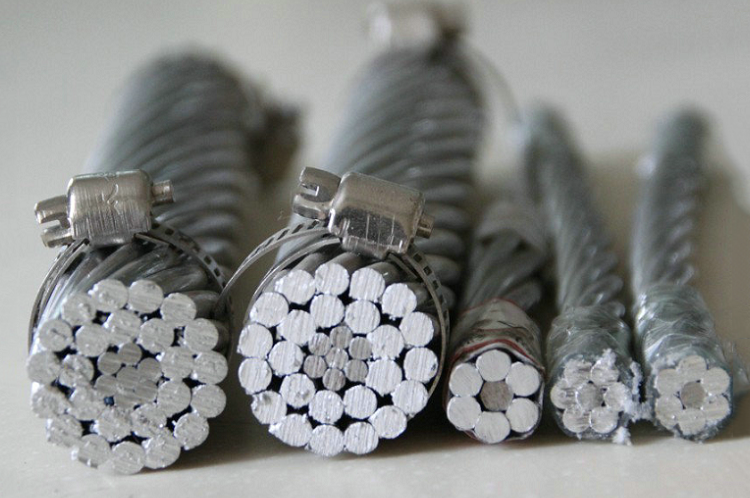

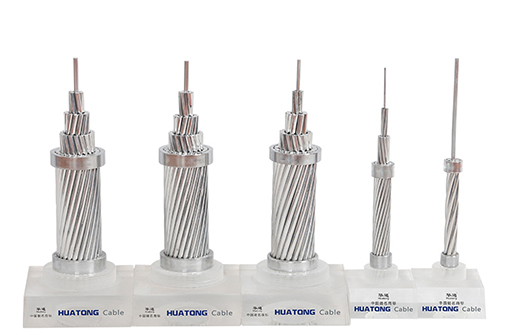

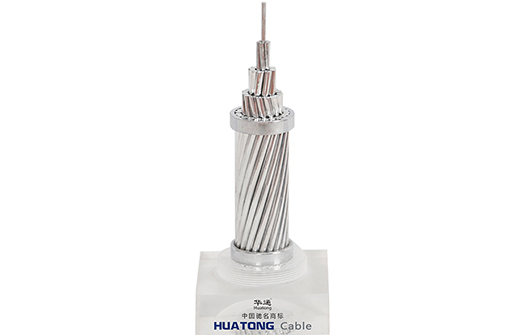

ACSS is a composite concentric-lay stranded conductor. Steel strands form the central core of the conductor with two or more layers of aluminum 1350-O wire stranded around it. The steel core carries most or all of the mechanical load of the conductor due to the “O” temper (fully annealed or soft) aluminum. Steel core wires are protected from corrosion by a zinc-5% aluminum-mischmetal alloy coating. For aluminum-clad (AW) ACSS, please refer to the ACSS/AW catalog sheet. Corrosion protection should be selected to suit the environment to which the conductor will be exposed.

■Standard

Products can be manufactures according to IEC standard, ASTM standard,BS standard, DIN and other standard and customizable cable.

■Download

■ASTM B232 Standard

Code Word	Size (Kcmil)	Stranding (Al/St)	Diameter (in)				Weight Per 100ft (lb)			Rated Strength			Resistance ohms/1000ft
			Individual Wires		Steel Core	Complete Cable	Al	Steel	Total	Standard Strength lb	High* Strength lb	HS285** Strength lb	DC @20℃	AC @ 75℃
			Al	Steel	Steel Core	Complete Cable	Al	Steel	Total	Standard Strength lb	High* Strength lb	HS285** Strength lb	DC @20℃	AC @ 75℃
Partridge/ACSS	266.8	26/7	0.101	0.079	0.24	0.642	251	115.5	366.8	8880	9730	11400	0.062	0.076
Junco/ACSS	266.8	30/7	0.094	0.094	0.28	0.66	252	165.5	417.4	11700	13000	15200	0.062	0.076
Ostrich/ACSS	300	26/7	0.107	0.084	0.25	0.68	283	129.9	412.4	10000	10900	12800	0.055	0.068
Linnet/ACSS	336.4	26/7	0.114	0.089	0.27	0.72	317	145.7	462.5	11200	12300	14400	0.049	0.06
Oriole/ACSS	336.4	30/7	0.106	0.106	0.32	0.741	318	208.7	526.3	14800	16300	19100	0.049	0.06
Brant/ACSS	397.5	24/7	0.129	0.086	0.26	0.772	374	137	511.4	11000	12100	14100	0.042	0.051
Ibis/ACSS	397.5	26/7	0.124	0.096	0.29	0.783	374	172.1	546.5	13000	14200	16500	0.042	0.051
Lark/ACSS	397.5	30/7	0.115	0.115	0.35	0.806	375	246.5	621.9	17500	19300	22600	0.041	0.051
Flicker/ACSS	477	24/7	0.141	0.094	0.28	0.846	449	164.4	613.6	13000	14200	16400	0.035	0.043
Hawk/ACSS	477	26/7	0.135	0.105	0.32	0.858	449	206.5	655.8	15600	17100	19800	0.035	0.043
Hen/ACSS	477	30/7	0.126	0.126	0.38	0.883	450	295.9	746.3	21000	22700	26700	0.034	0.042
Dove/ACSS	556.5	26/7	0.146	0.114	0.34	0.927	524	240.9	765.1	18200	19900	23200	0.03	0.037
Eagle/ACSS	556.5	30/7	0.136	0.136	0.41	0.953	525	345.2	870.6	24500	26500	31100	0.03	0.036
Peacock/ACSS	605	24/7	0.159	0.106	0.32	0.953	570	208.5	778.3	16500	18100	20800	0.027	0.034
Squab/ACSS	605	26/7	0.153	0.119	0.36	0.966	570	261.9	831.8	19700	21300	25200	0.027	0.034
Wood Duck/ACSS	605	30/7	0.142	0.142	0.43	0.994	571	375.3	946.5	26000	28300	33300	0.027	0.033
Teal/ACSS	605	30/19	0.142	0.085	0.43	0.994	571	367.4	938.6	26600	29300	34800	0.027	0.034
Rook/ACSS	636	24/7	0.163	0.109	0.33	0.977	599	219.2	818.2	17300	19000	21900	0.026	0.032
Grosbeak/ACSS	636	26/7	0.156	0.122	0.36	0.991	599	275.4	874.4	20700	22400	26000	0.026	0.032
Scoter/ACSS	636	30/7	0.146	0.146	0.44	1.019	601	394.5	995	27400	29700	35000	0.026	0.032
Egret/ACSS	636	30/19	0.146	0.087	0.44	1.019	601	386.3	986.8	28000	30900	36600	0.026	0.032
Flamingo/ACSS	666.6	24/7	0.167	0.111	0.33	1	628	229.7	857.6	18200	19900	22900	0.025	0.031
Gannet/ACSS	666.6	26/7	0.16	0.125	0.37	1.014	628	288.6	916.4	21700	23400	27300	0.025	0.031
Stilt/ACSS	715.5	24/7	0.173	0.115	0.35	1.036	674	246.5	920.5	19500	21300	24600	0.023	0.029
Starling/ACSS	715.5	26/7	0.166	0.129	0.39	1.051	674	309.8	983.7	23300	25200	29800	0.023	0.029
Redwing/ACSS	715.5	30/19	0.154	0.093	0.46	1.081	676	434.6	1110	30800	34000	39800	0.023	0.028
Cuckoo/ACSS	795	24/7	0.182	0.121	0.36	1.092	749	274	1023	21700	23300	26900	0.021	0.026
Drake/ACSS	795	26/7	0.175	0.136	0.41	1.107	749	344.2	1093	25900	28000	32600	0.021	0.026
Macaw/ACSS	795	42/7	0.138	0.076	0.23	1.055	749	108.7	857.5	11800	12600	14300	0.021	0.026
Tern/ACSS	795	45/7	0.133	0.089	0.27	1.063	749	146.1	894.9	14200	15200	17400	0.021	0.026
Condor/ACSS	795	54/7	0.121	0.121	0.36	1.092	749	274	1023	21700	23300	26900	0.021	0.027
Mallard/ACSS	795	30/19	0.163	0.098	0.49	1.139	751	482.8	1233	34300	37900	44300	0.021	0.026
Ruddy/ACSS	900	45/7	0.141	0.094	0.28	1.131	848	165.4	1013	15800	17000	19200	0.019	0.023
Canary/ACSS	900	54/7	0.129	0.129	0.39	1.162	848	310.1	1158	24600	26400	30500	0.018	0.024
Redbird/ACSS	954	24/7	0.199	0.133	0.4	1.196	899	328.7	1227	26000	28000	32300	0.017	0.022
Rail/ACSS	954	45/7	0.146	0.097	0.29	1.165	899	175.3	1074	16700	18000	20400	0.018	0.022
Towhee/ACSS	954	48/7	0.141	0.11	0.33	1.175	899	223.7	1122	19700	21300	24300	0.018	0.022
Cardinal/ACSS	954	54/7	0.133	0.133	0.4	1.196	899	328.7	1227	26000	28000	32300	0.017	0.022
Canvasback/ACSS	954	30/19	0.178	0.107	0.54	1.248	901	579.4	1480	41100	45400	53100	0.017	0.021
Snowbird/ACSS	1034	42/7	0.157	0.087	0.26	1.203	973	141.3	1115	15400	16500	18500	0.016	0.02
Ortolan/ACSS	1034	45/7	0.152	0.101	0.3	1.212	973	190	1163	18100	19500	22000	0.016	0.02
Curlew/ACSS	1034	54/7	0.138	0.138	0.42	1.245	973	356.2	1330	28200	30300	35000	0.016	0.021
Bluejay/ACSS	1113	45/7	0.157	0.105	0.31	1.258	1048	204.5	1253	19500	21100	23800	0.015	0.019
Finch/ACSS	1113	54/19	0.144	0.086	0.43	1.292	1053	375.5	1429	30400	33200	38700	0.015	0.019
Bunting/ACSS	1193	45/7	0.163	0.109	0.33	1.302	1123	219.2	1342	21400	23500	25400	0.014	0.018
Pheasant/ACSS	1272	54/19	0.154	0.092	0.46	1.381	1204	429.2	1633	34100	37300	43000	0.013	0.017
Dipper/ACSS	1351	45/7	0.173	0.116	0.35	1.386	1273	248.3	1521	23700	25500	28800	0.012	0.016
Martin/ACSS	1351	54/19	0.158	0.095	0.47	1.424	1279	455.8	1735	36200	39600	45600	0.012	0.016
Bobolink/ACSS	1431	45/7	0.178	0.119	0.36	1.427	1348	263	1611	25100	27000	30500	0.012	0.015
Plover/ACSS	1431	54/19	0.163	0.098	0.49	1.465	1354	482.8	1837	38400	41900	48300	0.012	0.015
Nuthatch/ACSS	1510	45/7	0.183	0.122	0.37	1.465	1422	277.5	1700	26500	28100	31800	0.011	0.014
Parrot/ACSS	1510	54/19	0.167	0.1	0.5	1.505	1429	509.5	1939	40400	44200	51000	0.011	0.014
Ratite/ACSS	1590	42/7	0.195	0.108	0.32	1.492	1498	217.4	1715	23400	25000	27900	0.011	0.014
Lapwing/ACSS	1590	45/7	0.188	0.125	0.38	1.504	1498	292.2	1790	27900	29600	33500	0.011	0.014
Falcon/ACSS	1590	54/19	0.172	0.103	0.51	1.544	1505	536.5	2041	42600	46600	53700	0.011	0.014
Chukar/ACSS	1780	84/19	0.146	0.087	0.44	1.601	1685	386.1	2071	35400	38200	43900	0.009	0.012
Mockingbird/ACSS	2035	72/7	0.168	0.112	0.34	1.681	1926	233.7	2159	27200	28900	32000	0.008	0.011
Roadrunner/ACSS	2057	76/19	0.165	0.077	0.38	1.7	1947	298.3	2245	31700	33900	38300	0.008	0.011
Bluebird/ACSS	2156	84/19	0.16	0.096	0.48	1.762	2041	467.6	2508	42100	45500	51700	0.008	0.01
Kiwi/ACSS	2167	72/7	0.174	0.116	0.35	1.735	2051	248.9	2300	29000	30800	34100	0.008	0.01
Thrasher/ACSS	2312	76/19	0.174	0.081	0.41	1.802	2188	335.3	2524	35600	38100	43000	0.007	0.01
Joree/ACSS	2515	76/19	0.182	0.085	0.42	1.88	2380	364.7	2745	38700	41400	46800	0.007	0.009

■Notes

1.Data based on a nominal cable manufactured in accordance with ASTM B 856.
2. Resistance and ampacity based on an aluminum conductivity of 63%, IACS at 20°C, and a steel conductivity of 8% IACS at 20°C.
3. Ampacity based on a 200°C conductor temperature, 25°C ambient temperature, 2 ft/sec. wind, in sun, with an emissivity
of 0.5 and a coefficient of solar absorption of 0.5, at sea level.
4. Rated strength for standard strength core based on Class A Galfan coated steel core wire in accordance with ASTM B 802.
5. Rated strength for high strength core based on Class A Galfan coated high strength steel core wire in accordance with B 803.
* Designated by "/HS" (e.g. Drake/ACSS/HS)
** Designated by "/HS285" (e.g. Drake/ACSS/HS285)
