Low Voltage Aluminum / Copper XLPE Power Cable

Certificate: ISO 9001
Supply Ability: 3000km/Month
Packaging Details: Wood Drum, Wood-metal Drum or Metal Drum.
Port: Qingdao / Tianjin/ Ningbo / Shanghai

Send message ht@htcable.cn
    Low Voltage  Aluminum / Copper XLPE Power Cable Low Voltage  Aluminum / Copper XLPE Power CableLow Voltage Aluminum / Copper XLPE Power CableLow Voltage  Aluminum / Copper XLPE Power Cable

Product Description

  • XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
  • XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
  • XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
  • Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
  • Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
  • Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable) FR – Flame Retardant

Application

The products applies to the lines of 0.6/1kv rated voltage. The products is mainly used for electric transmission and transportation in high buildings, subways, power stations, entertainment places, industrial enterprises and sea petrol platform etc, where a high intensity of cable laying and a strong flame-retardant ability are required.

Structure

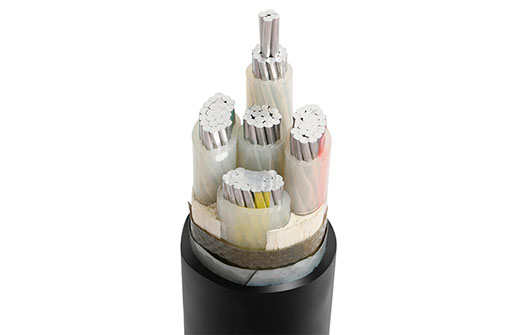

0.6/1kv Power Cable consists of Aluminum or Copper Core, XLPE Insulation, Metal armor (Steel Tape, Steel wire) or no-armor, PVC Sheath.

Standard

Products can be manufactures according to IEC 60502, BS 7870-3

Download

0.6/1kV 1 Core XLPE Cable

Nominal Cross-sectional Area Approx. Outside Diameter of Conductor Thickness of Insulation (nom.)
Thickness of Extruded Inner Covering Diameter of Armour Wire (nom.)
Thickness of PVC Outer Sheath (nom.)
Approx. Overall Diameter
AWA DATA AWA DATA UnAr AWA DATA UnAr AWA
mm ²



mm mm mm mm mm mm
1.5 1.59 0.7 1.0   0.9   1.4 1.8   7 11
2.5 2.01 0.7 1.0   0.9   1.4 1.8   7 11
4 2.55 0.7 1.0   0.9   1.4 1.8   8 12
6 3.12 0.7 1.0   0.9   1.4 1.8   8 12
10 4.05 0.7 1.0   0.9   1.4 1.8   9 13
16 4.7 0.7 1.0 1.0 0.9 0.5 1.4 1.8 1.8 10 14
25 5.9 0.9 1.0 1.0 0.9 0.5 1.4 1.8 1.8 11 16
35 6.9 0.9 1.0 1.0 0.9 0.5 1.4 1.8 1.8 12 17
50 8.1 1 1.0 1.0 0.9 0.5 1.4 1.8 1.8 14 18
70 9.8 1.1 1.0 1.0 0.9 0.5 1.4 1.8 1.8 16 20
95 11.4 1.1 1.0 1.0 0.9 0.5 1.5 1.8 1.8 18 22
120 12.8 1.2 1.0 1.0 1.6 0.5 1.5 1.8 1.8 19 25
150 14.2 1.4 1.0 1.0 1.6 0.5 1.6 1.8 1.8 21 27
185 15.8 1.6 1.0 1.0 1.6 0.5 1.6 1.8 1.8 23 29
240 18.1 1.7 1.0 1.0 1.6 0.5 1.7 1.9 1.8 26 32
300 20.4 1.8 1.0 1.0 1.6 0.5 1.8 2.0 1.9 29 34
400 23.2 2.0 1.2 1.2 2.0 0.5 1.9 2.1 2.0 32 39
500 26.3 2.2 1.2 1.2 2.0 0.5 2.0 2.2 2.2 36 43
630 30.2 2.4 1.4   2.5   2.2 2.5   42 49
800 34 2.6 1.4   2.5   2.3 2.7   46 54
1000 38.7 2.8 1.4   2.5   2.4 2.8   51 59
